/ Transparent series

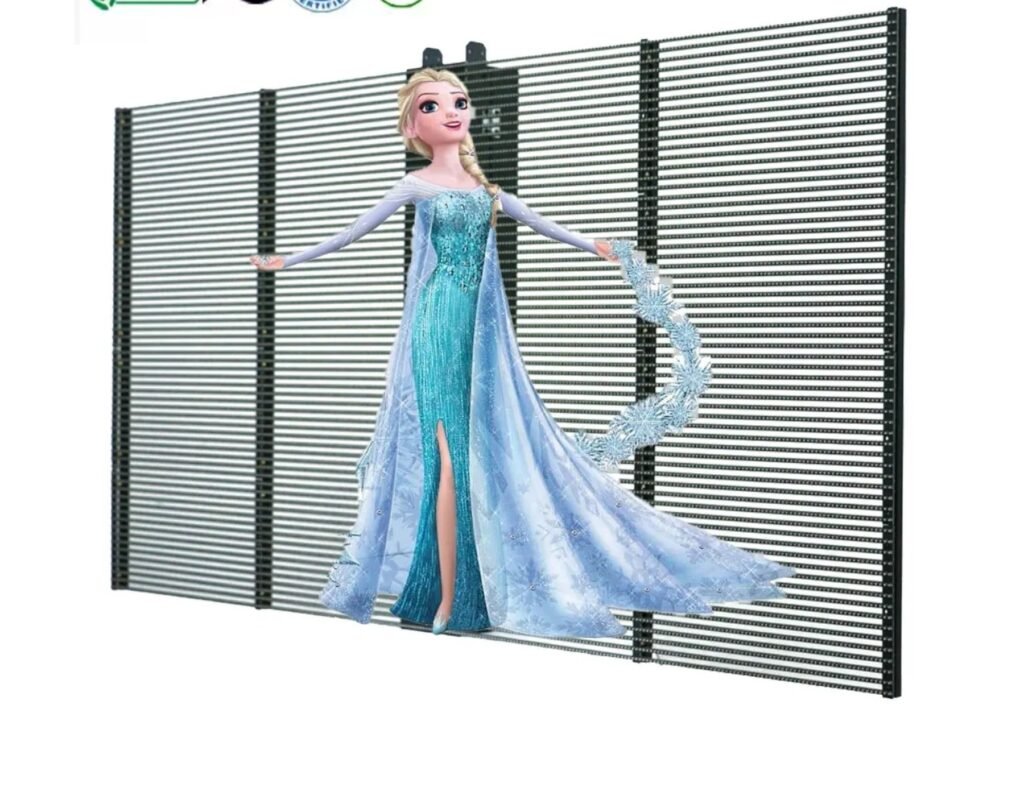

LED Transparent mesh screen
- See-through mesh strips for glass windows and facades
- Pixel pitch options(mm): 3.9 / 4.8 / 6.25 / 7.8
- Cabinet: 1000×1000 mm (also 1000×500, 1500×1000, 2000×1000)

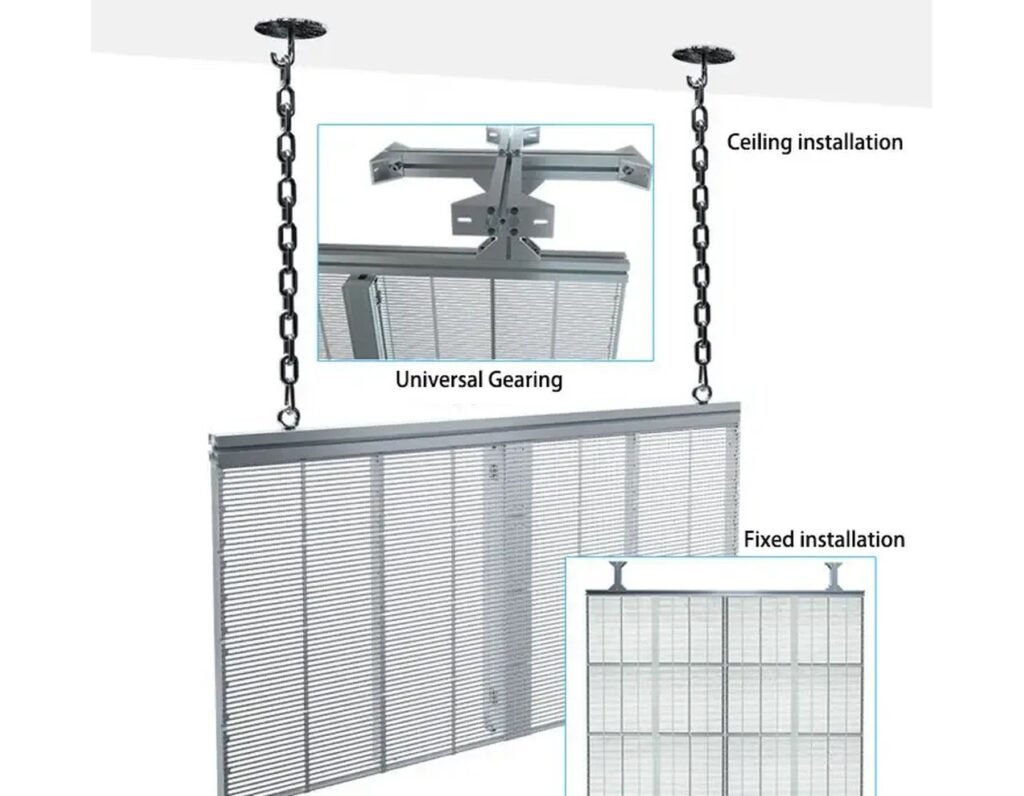

- Die-cast aluminium, ceiling-hung or wall-fixed
- Brightness: 2500–5000 nit for sunlit glass
- IP65 (IP67 optional)
- Refresh 1920–3840 Hz, 5000:1 contrast

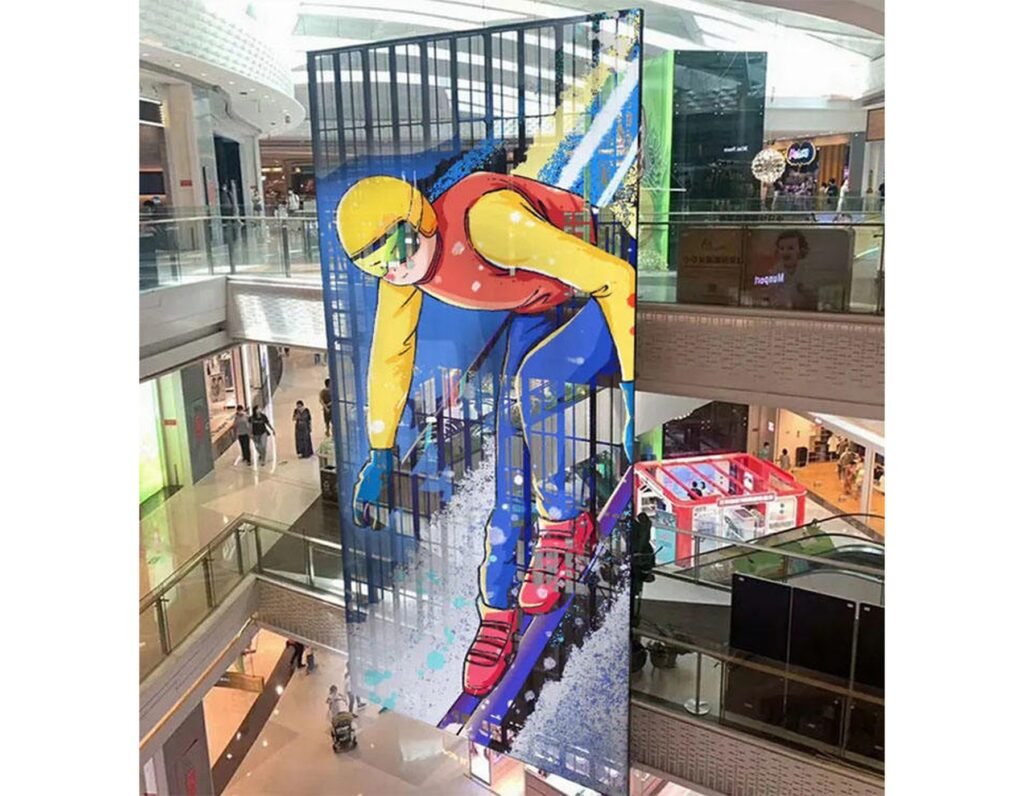

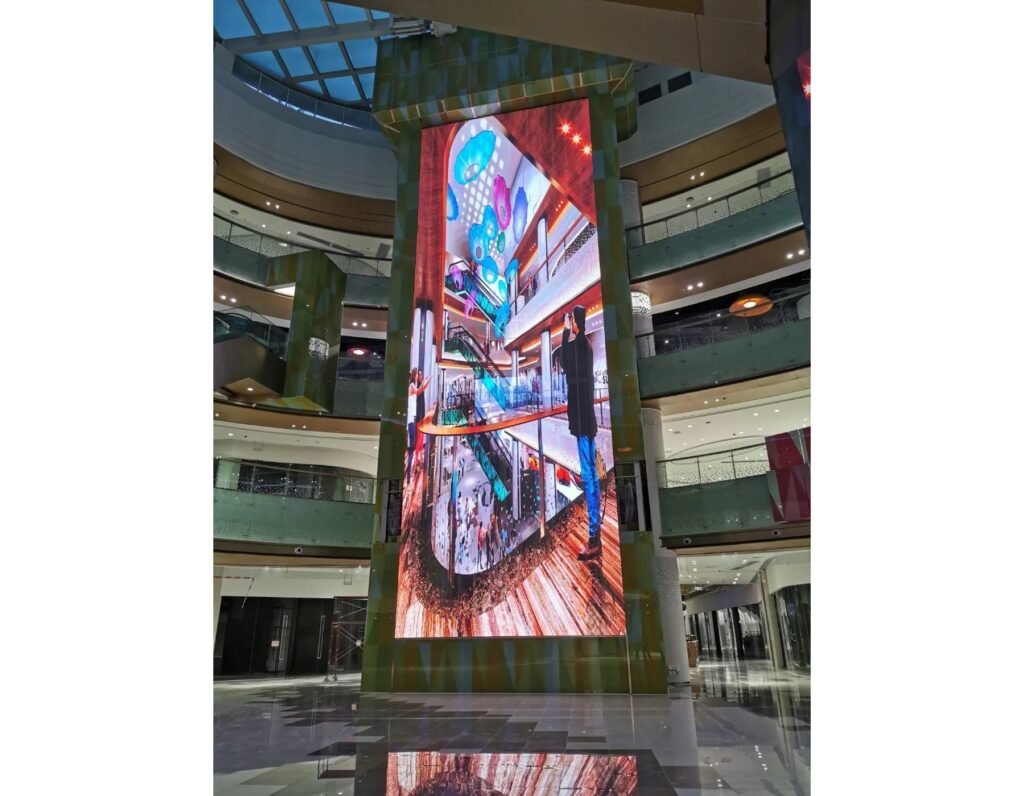

- Indoor shop windows and outdoor facades, −20℃ to +60℃
Follow me:
Our specialty
1, Turnkey solutions: product sourcing, installation, and long‑term maintenance in one packag
2, Custom-made LED displays + free on‑site design and layout consultation.
3,Rapid 7‑10 days production and dedicated project management from order to handover.
| Technical Specification | |||
| / Module / | |||
| Pixel pitch(mm) | 3.9 / 4.8 / 6.25 / 7.8 optional | Pixel configuration | 1R 1G 1B |
| Module | Mesh / strip | LED type | SMD |
| / Cabinet / | |||
| Cabinet size(mm) | 1000×1000 (also 1000×500, 1500×1000, 2000×1000) | Material | Die-cast aluminium |
| Weight | — | Transparency | — |
| / Technical Parameter / | |||
| Brightness | 2500–5000 cd/㎡ | Contrast | 5000:1 |
| Ingress protection | IP65 (IP67 optional) | Refresh frequency | 1920–3840 Hz |
| Viewing angle | — | Grey level | — |
| Maintenance | — | Lifetime | >100,000 hours |
| Input voltage | — | Operating temperature | −20℃ ~ +60℃ |
| Mounting | Ceiling-hung or wall-fixed | Application | Indoor window / outdoor facade |
