/ Outdoor fixed mounting series

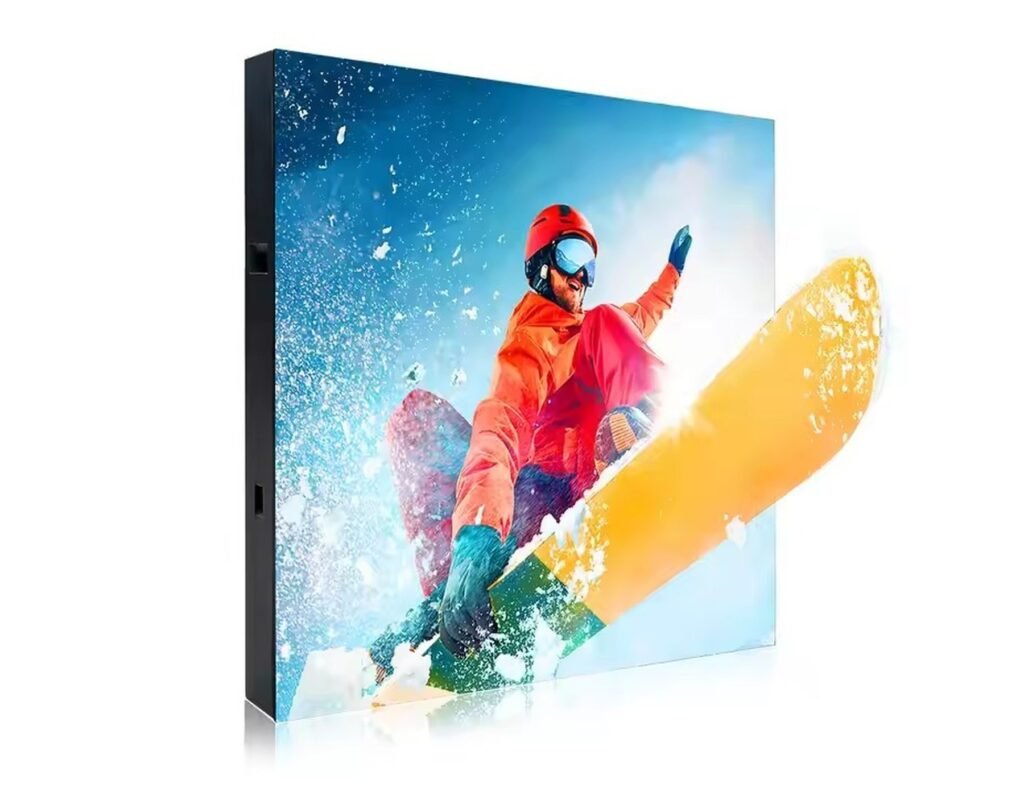

FIXED MOUNTING LED SCREEN-OI

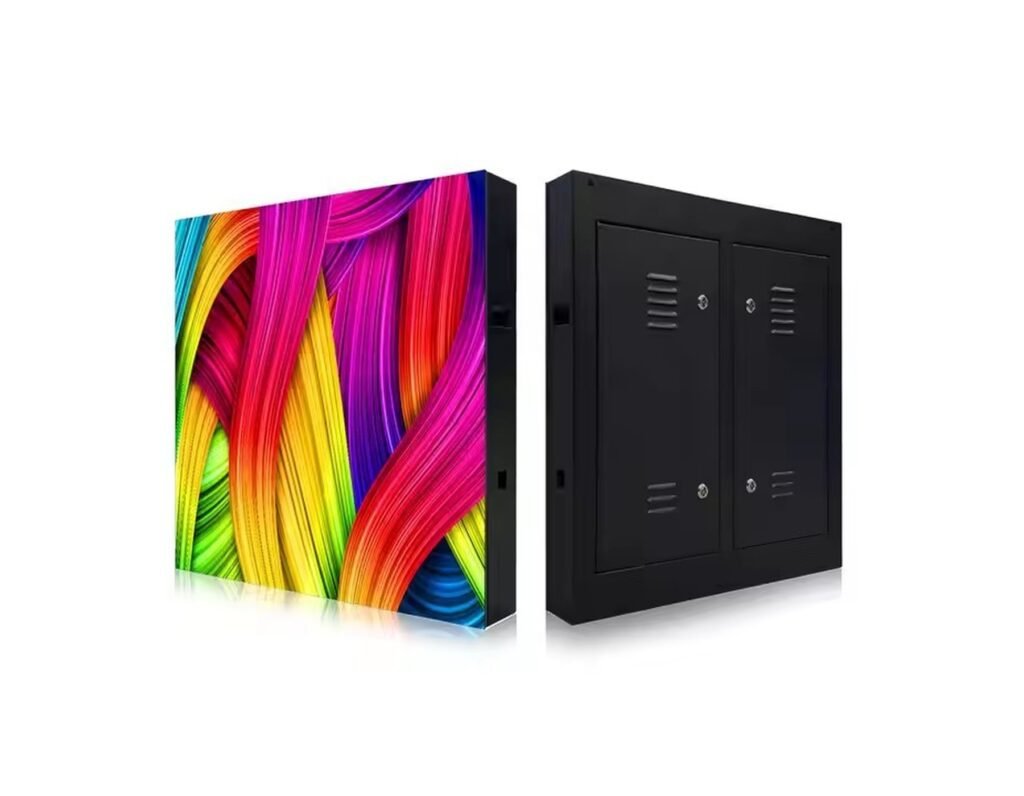

- Iron sheet-metal cabinet, front and rear maintenance
- Pixel pitch options(mm): 4 / 5 / 6 / 8 / 10
- Standard cabinet: 960×960 mm, 90–110 mm deep
- 18 × 320×160 mm modules per cabinet
- Brightness: 4500–7500 nit, daylight-readable

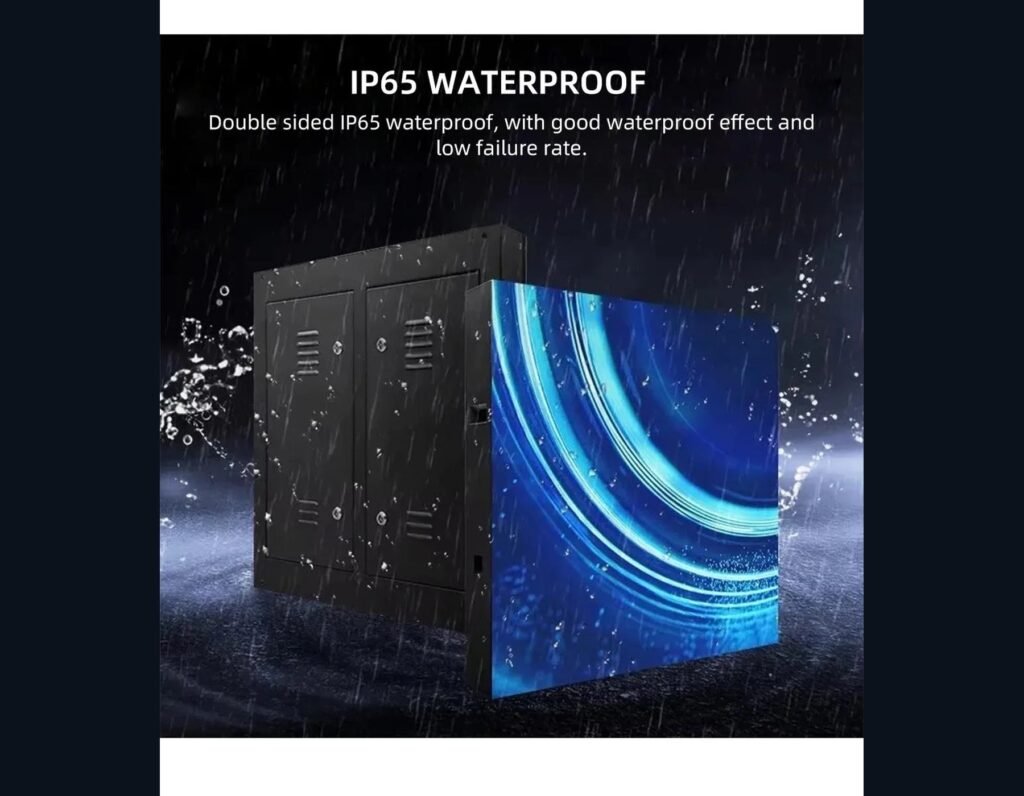

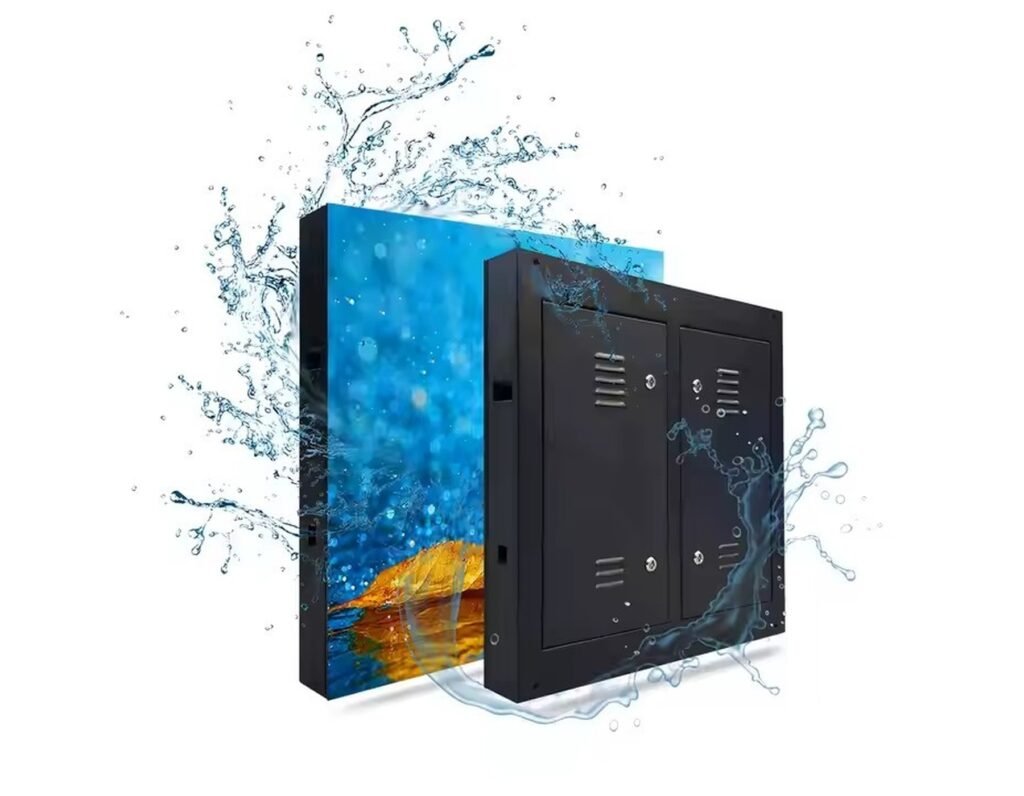

- IP65 front and rear
- Refresh 1920 Hz (3840 / 7680 Hz optional)
- 14-bit grayscale, 160° viewing
Follow me:
Our specialty
1, Turnkey solutions: product sourcing, installation, and long‑term maintenance in one packag
2, Custom-made LED displays + free on‑site design and layout consultation.
3,Rapid 7‑10 days production and dedicated project management from order to handover.
| Technical Specification | |||
| / Module / | |||
| Pixel pitch(mm) | 4 / 5 / 6 / 8 / 10 optional | Pixel configuration | 1R 1G 1B |
| Module size(W*H) | 320×160 mm | LED type | SMD |
| / Cabinet / | |||
| Cabinet size(W*H*D/mm) | 960×960×90–110 | Module Quantity | 18 |
| Material | Iron (sheet metal) | Weight (kg/sqm) | — |
| Avg.power consumption(w/sqm) | 400–600 | Max.power consumption(w/sqm) | 1000–1200 |
| / Technical Parameter / | |||
| Brightness | 4500–7500 cd/㎡ | LED type | SMD1921 / SMD2727 / SMD3535 (pitch-dependent) |
| IC | — | Connector | Waterproof power / signal |
| Viewing angle | Horizontal: 160 degrees Vertical: 160 degrees | Grey level | 14bits |
| Ingress protection | IP65 | Refresh frequency | ≥1920 Hz (3840 / 7680 optional) |
| Maintenance way | Front and back | Lifetime at 50% brightness | >100,000 hours |
| Input voltage | AC100–240V | Operating temperature | −10℃ ~ +40℃ |
| Operating humidity | 10% ~ 90% | Control distance | <100M CAT5 or fibre for longer runs |
