LED HOLOGRAPHIC SCREEN

/ Transparent series

Call us

+86 135 4920 2705

Email us

977molly@gmail.com

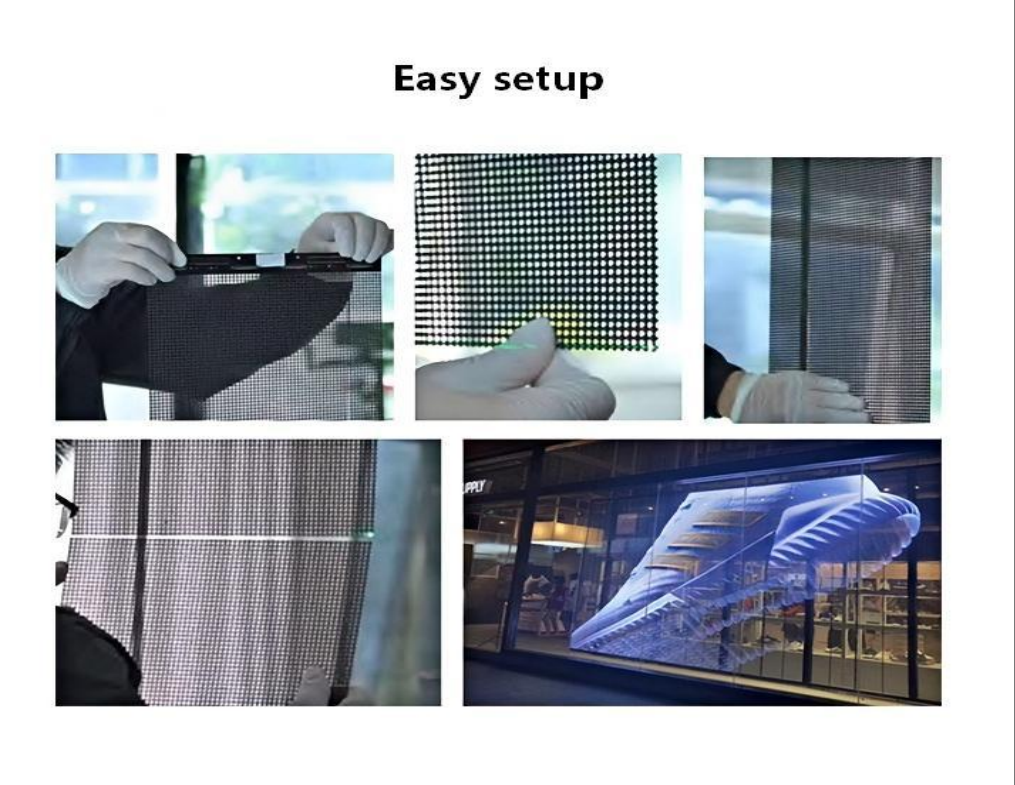

Plug and play without assembly
Pixel pitch options(mm): 2.5/3.9/6.25/8/10/15
Ultra-high transparency: 85% – 95%
System: Novastar
Panel size(mm): 250mm width, length have 1000/ 1200/ 1500/ 2000mm optiona, and depends on the pixel pitch you choose
Brightness:1200/>2000/40000/7000nit optional

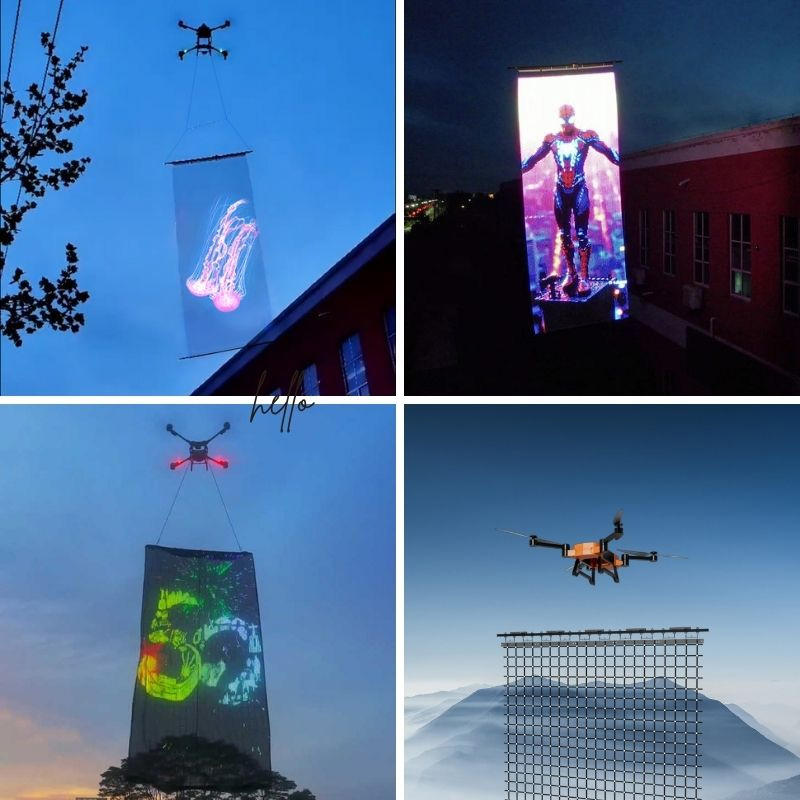

3D Holography, Spatial floating image

Follow me:

1, Turnkey solutions: product sourcing, installation, and long‑term maintenance in one packag

2, Custom-made LED displays + free on‑site design and layout consultation.

3,Rapid 7‑10 days production and dedicated project management from order to handover.

No.	Project metrics		Performance parameters
(1) Technical standards
	Product model		P2.5	P3.91	P6.25
1	Luminous form		Positive glow	Positive glow	Positive glow
2	Pixel pitch		Width/length 2.5mm	Width/length 3.91mm	6.25m in width/length
	Pixel density		160000 points	65536 points	25600 points
3	The type of light		The lights drive into one	The lights drive into one	The lights drive into one
4	Light source package form		SMD1415	SMD2121	SMD2121
(2) LED screen
5	Module size		1000x125mm	1000x250mm	1200x250mm
			1200x125mm	1200x250mm	1500x250mm
				1500x250mm
6	Module thickness		≤1.8MM
7	Module structure		Array single-hole permeable structure
8	Brightness		≥ 1200cd/sqm	≥ 3500cd/sqm	≥ 5000cd/sqm
9	Contrast		9000:1
10	Grayscale level		16bit
11	Transparency		≥65%	≥80%	≥90%
12	Frame rate
13	Module weight		≤250g	≤550g	≤650g
14	Watch perspective		Horizontal 140°, vertical 140°
15	Drive mode		Fully static
16	Flatness (mm)		≤1mm/m
17	Pixel runaway point		＜1/10000, discrete distribution
18	Input voltage		100-240v/AC
19	Start-up power consumption		≤750w/m²
20	Operating power consumption		≤200w/m²
21	Service life		≥ 100,000 hours
22	Mean time between failures		≥ 10,000 hours
23	Working environment		Temperature: -30°C-60°C Humidity: 30%-85%RH
24	Maintenance		Before/after maintenance
(3) Protection level
25	Pin solder joint thrust		≥4kg/led
(4) Qualification certification
Product certification		ROHS/CE
