/ Outdoor fixed mounting series
FIXED MOUNTING LED SCREEN

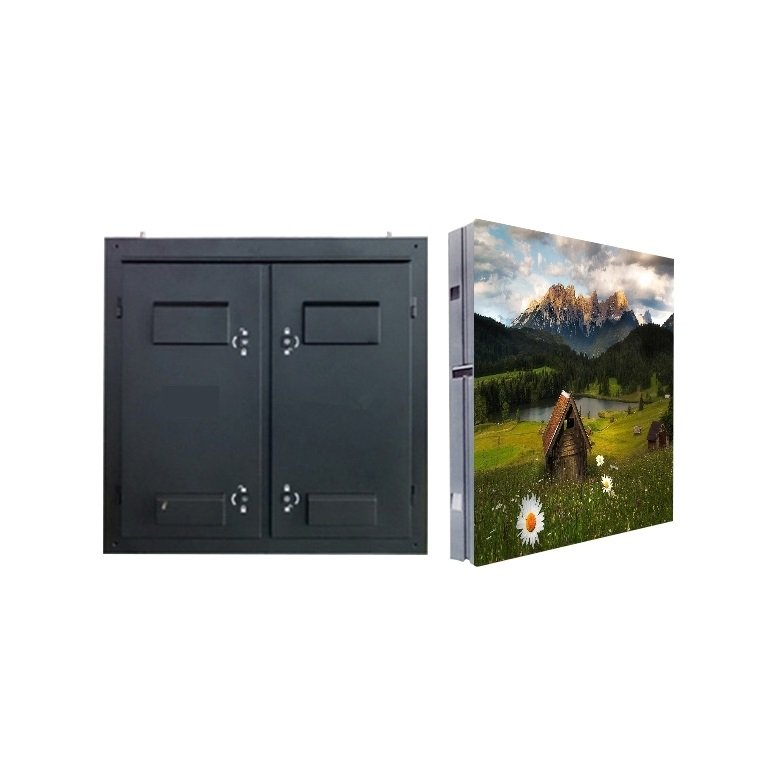

- Rear and front installation and maintenance aluminum LED panel
- Pixel pitch options(mm): 2.9/3.9/5.7/6.25/6.67/8/10
- LED Lamp: Nationstar/ Kinglight/Rayshine
- System: Novastar A5splus + Novastar video processor
- Panel size(mm): 500×1000, 500×750, 750×1000, 960×960
- Brightness: 5000-10000nit, depends on the pixel pitch and what lamp you choose
- Common-cathode energy-saving design

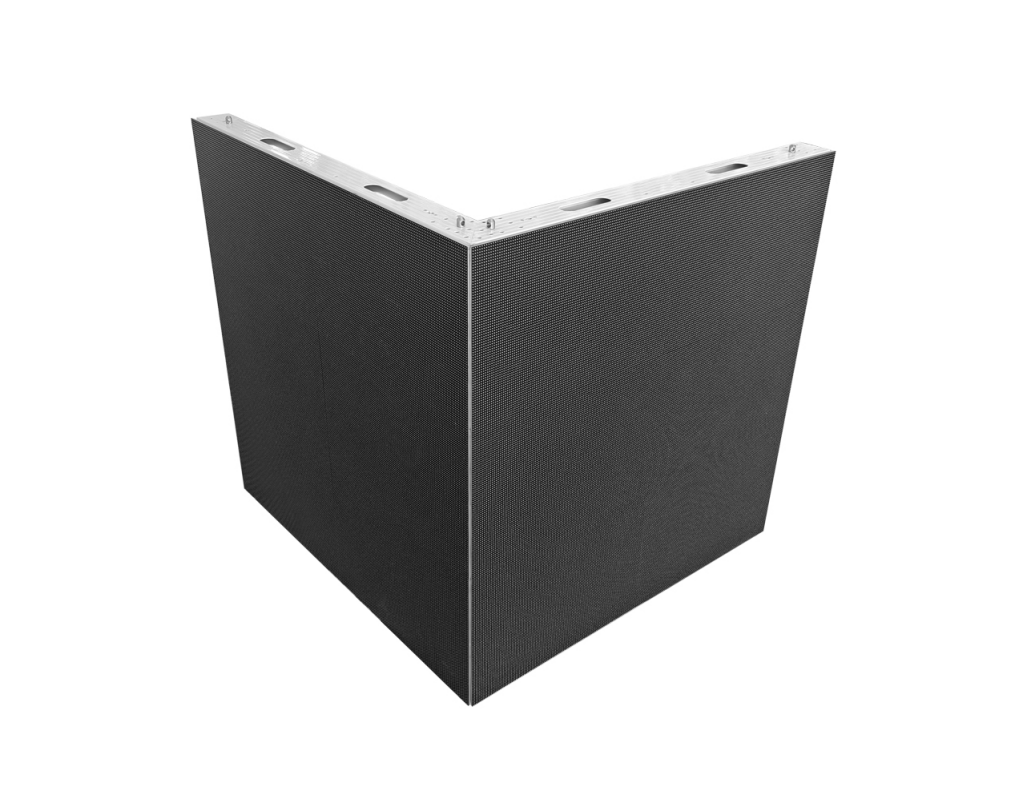

- 3D corner LED cabinet available
Follow me:
Our specialty
1, Turnkey solutions: product sourcing, installation, and long‑term maintenance in one packag
2, Custom-made LED displays + free on‑site design and layout consultation.
3,Rapid 7‑10 days production and dedicated project management from order to handover.
| Technical Specification | |||
| / Module / | |||
| Pixel pitch(mm) | 2.9/3.9/5.7/6.25/6.67/8/10 optional | Pixel configuration | 1R 1G 1B |
| Module size(W*H) | 480*320/ 500*250mm | LED type | SMD |
| / Cabinet / | |||
| Cabinet size(W*H*D/mm) | 500×1000, 500×750, 750×1000, 960×960 | Module Quantity | 6 |
| Material | Aluminum | Weight (kg/sqm) | 25-26 |
| Avg.power consumption(w/sqm) | 160 | Max.power consumption(w/sqm) | 480 |
| / Technical Parameter / | |||
| Brightness | 5000-10000cd/㎡ | LED type | Nationstar/ Kinglight/Rayshine optional |
| IC | Energy saving IC Chipfountain CS2033 | Connector | Seetronic connector |
| Viewing angle | Horizontal: 160 degrees Vertical: 160 degrees |
Grey level | 14bits |
| Ingress protection | IP66 | Refresh frequency | ≥7680Hz |
| Maintenance way | Front and back | Lifetime at 50% brightness | >100,000 hours |
| Input voltage | AC220V | Operating temperature | -40℃ ~ +60℃ |
| Operating humidity | 10% ~ 95% | Control distance | <120M with UTP CAT.6 network cable (without relay) OR 500M-10,000M with fiber |
