All-in-one series
LED spherical screen

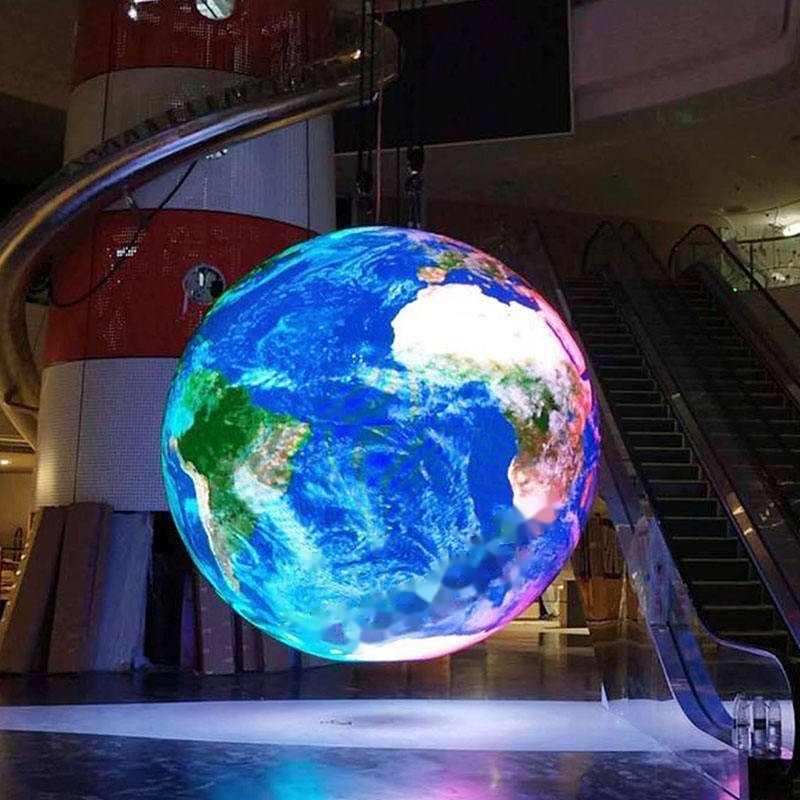

A 360° indoor LED globe that ships as a finished shape — not a wall of loose cabinets. Stand it in a lobby, hang it in an atrium, or mount a hemisphere on a ceiling soffit. Fine pitch is customizable for the viewing distance; content reads from every angle. Tell us the job (lobby, mall, showroom, event) and we size the sphere and mount with you.
Highlights
- 360° spherical LED — wraparound viewing for lobbies, atriums, and exhibition floors; one object, every approach angle.
- Customizable fine pitch — listing class covers P1.25–P2.5; confirm pitch on RFQ by viewing distance (do not assume a single fixed pitch).
- Custom size — diameter/size is made to project; no fixed diameter table in the source listing.
- Indoor-tuned picture — about 600 cd/m², 3840 Hz refresh, 16-bit processing, 4000:1 contrast, HDR10 support as listed.
- Back service — service access from the rear for maintenance planning.

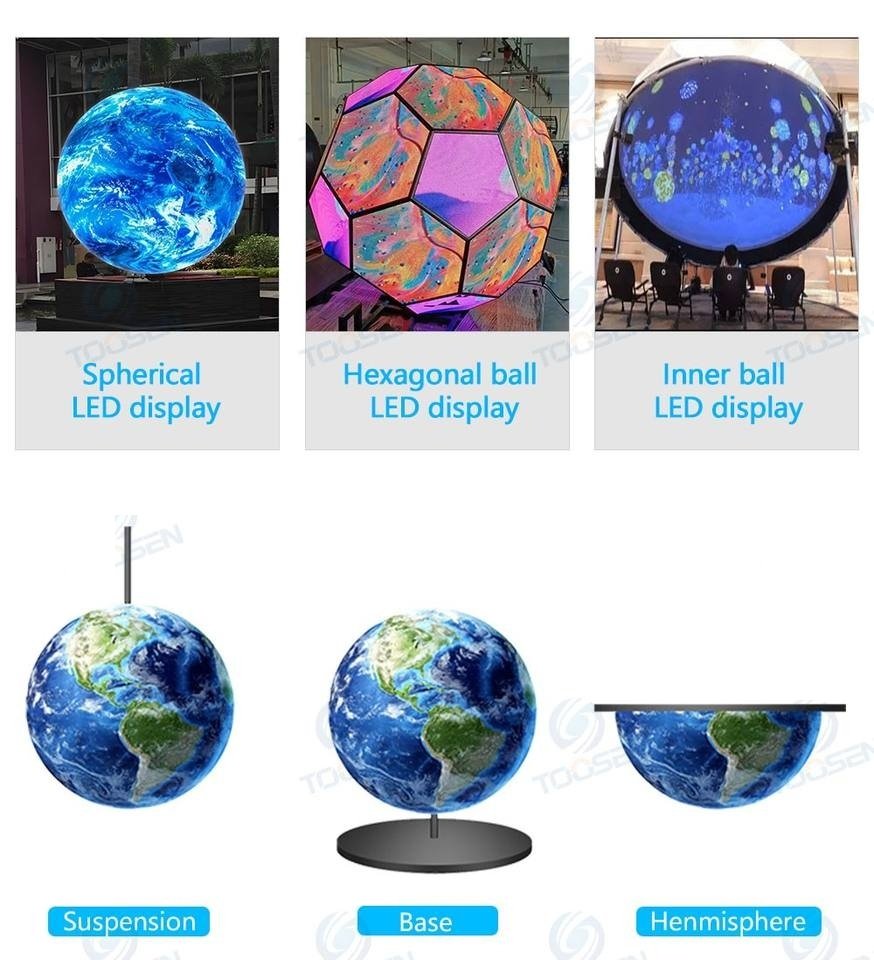

- Mount options — wall / standing / suspension / base / hemisphere (see install-types image).
- Remote content management — remote publish and status monitoring as listed.
- Wide AC input — 100–240 V; about 300 W/m² power density as listed.
- Warranty position — 3 years as listed.
Gallery
Key specifications
| Product | LED spherical screen |
|---|---|
| Series | All-in-one |
| Application | Indoor (listed IP20; tested IP42 — not outdoor IP65) |
| Pixel pitch | Customizable fine pitch (e.g. P1.25–P2.5 class) — confirm on RFQ |
| Screen size / diameter | Custom — sized to the project |
| Viewing | 360° (full sphere); hemisphere mount available |
| Resolution | Up to 3840 × 2160 (4K) as listed |
| Brightness | ~600 cd/m² |
| Refresh rate | 3840 Hz |
| Contrast | 4000:1 |
| Color depth | 16-bit |
| Color gamut | Adobe RGB 90% (as listed) |
| Color temperature | 2000 K–10000 K |
| HDR | HDR10 (as listed) |
| Pixel density | 65,536 pixels/m² (as listed) |
| Power | ~300 W/m² |
| Power supply | 100–240 V AC |
| Operating temperature | −20 °C to 60 °C |
| IP rating | IP20 / tested IP42 → treat as indoor |
| Service access | Back service |
| Installation | Wall-mounting, standing, suspension, base, hemisphere |
| Content | Remote content management & status monitoring (as listed) |
| Warranty | 3 years (source claim) |
Indoor only (IP20 / tested IP42). Pitch and diameter are confirmed on RFQ — do not treat a single pitch or size as fixed.
Related All-in-one products
Size a sphere for your lobby or atrium
Send viewing distance, target diameter or ceiling height, and whether you need stand, hang, or hemisphere. We will confirm pitch and mount before production.
