SFxDisplay LED module

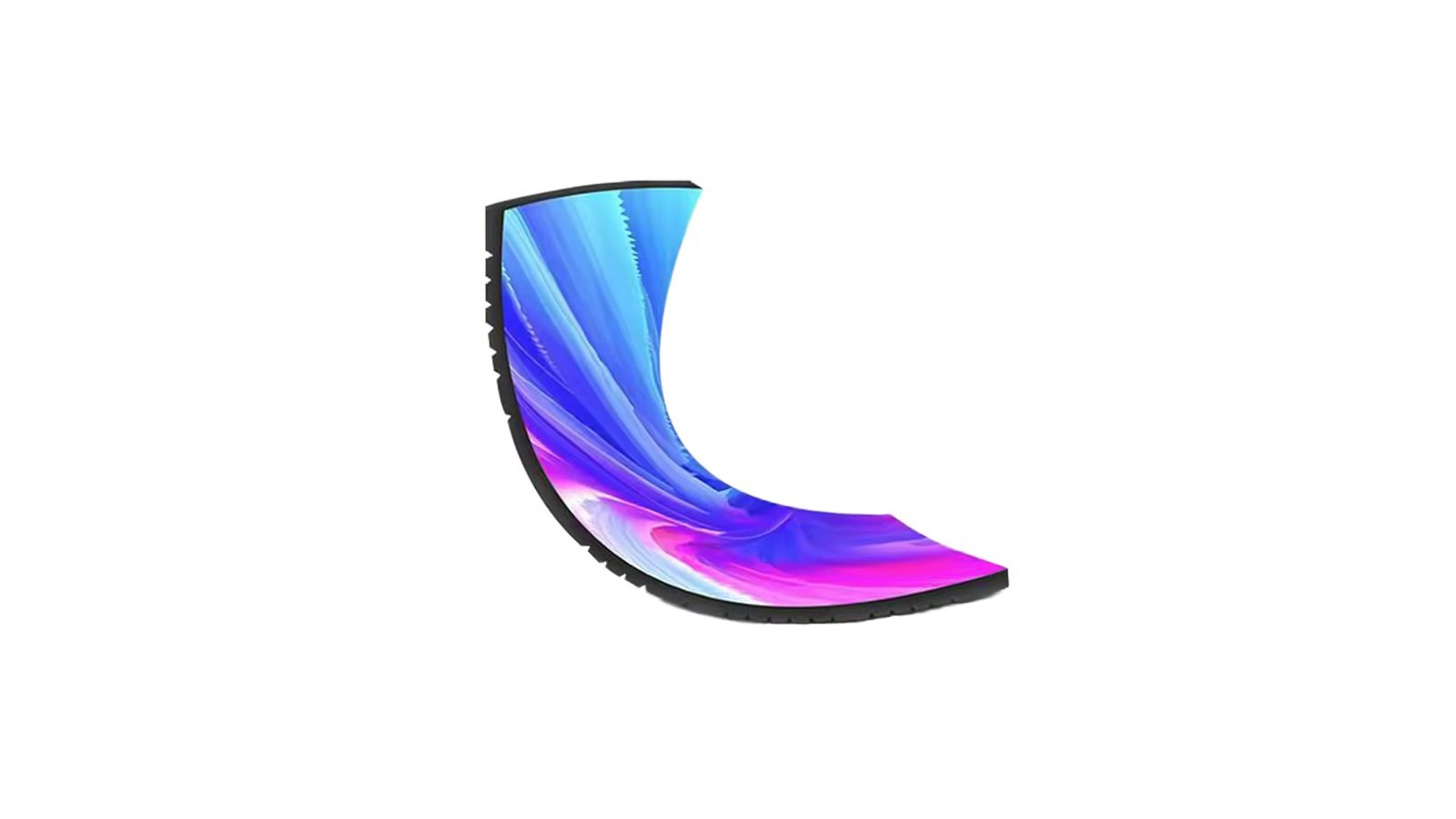

Flexible LED module
A flexible soft LED module for curved retail features, columns, creative displays, and other installations where a flat panel cannot follow the shape. The reference specification lists a 320×160 mm module, P2.5, 1000 cd/m² brightness, and IP44.
Why this module
Soft module for curved forms
The flexible construction helps the display follow arcs and creative shapes that need more than a flat cabinet.
Compact 320×160 mm format
The listed size supports modular planning around columns, curves, and custom feature walls.
Indoor and outdoor reference
IP44 and indoor/outdoor application are listed; use the final enclosure and site exposure to confirm suitability.
Key specifications
| Application | Indoor / Outdoor |
|---|---|
| Pixel pitch | P2.5 (specification table) |
| Module dimensions | 320×160 mm |
| Resolution | 128×64 |
| Brightness | 1000 cd/m² |
| IP rating | IP44 |
| Operating temperature | −20°C–60°C |
| Contrast ratio | 5000:1 |
| Viewing angle | 160° |
| Display coating | Anti-smudge & anti-grease |
Specifications are based on the referenced supplier listing; confirm the selected pitch, environment, and project details before production.
